Fisher Matrix Forecasting with psiphy

This tutorial demonstrates how to use psiphy.forecasting.FisherMatrix to forecast parameter constraints from a simulator.

The workflow is:

1. Define a simulator f(theta, initial_seed, noise_seed) -> data_vector

2. Estimate the data covariance at the fiducial point

3. Estimate the derivatives dmu/dtheta via finite differences

4. Compute F = J C⁻¹ Jᵀ

5. Inspect confidence ellipses and compare with analytic results

We use a simple Gaussian likelihood model whose Fisher matrix is known analytically, so we can validate the numerical result.

import numpy as np
import matplotlib.pyplot as plt

from psiphy.forecasting import FisherMatrix

1. Define a toy simulator

We model N independent Gaussian observations with unknown mean mu and standard deviation sigma.

The FisherMatrix simulator must have the signature:

simulator(theta, initial_seed, noise_seed, **kwargs) -> 1D np.ndarray

The two seeds allow separating cosmic-variance realisations from noise realisations.

N_OBS = 30   # number of observations per realisation

def gaussian_simulator(theta, initial_seed, noise_seed, N=N_OBS):
    """Return N Gaussian samples with mean=theta[0], sigma=theta[1]."""
    mu, sigma = theta
    rng = np.random.default_rng(int(initial_seed) * 1000 + int(noise_seed))
    return rng.normal(loc=mu, scale=sigma, size=N)


# Fiducial parameters
theta_fid   = np.array([0.0, 1.0])   # mu=0, sigma=1
param_names = ['mu', 'sigma']

# Analytic Fisher for iid Gaussian: F = diag(N/sigma^2, 2N/sigma^4)
mu_fid, sigma_fid = theta_fid
F_analytic = np.diag([N_OBS / sigma_fid**2, 2 * N_OBS / sigma_fid**4])
F_inv_analytic = np.linalg.inv(F_analytic)
print("Analytic Fisher matrix:")
print(F_analytic)
print(f"\nAnalytic 1-sigma: mu={np.sqrt(F_inv_analytic[0,0]):.4f}, "
      f"sigma={np.sqrt(F_inv_analytic[1,1]):.4f}")

Analytic Fisher matrix:
[[30.  0.]
 [ 0. 60.]]

Analytic 1-sigma: mu=0.1826, sigma=0.1291

2. Set up the FisherMatrix object

fm = FisherMatrix(
    simulator=gaussian_simulator,
    theta_fid=theta_fid,
    param_names=param_names,
    verbose=True,
)
print(fm)

FisherMatrix(not computed, params=['mu', 'sigma'], n_realisations=0)

# Sanity check: run the simulator once and inspect the output
x0 = fm.test_simulator(seed=1, noise_seed=0)
print(f"Output shape: {x0.shape}, mean: {x0.mean():.3f}, std: {x0.std():.3f}")

==================================================
  Testing simulator at fiducial: {'mu': 0.0, 'sigma': 1.0}
  Output shape: (30,), raw range: [-1.535, 1.971]
==================================================

Output shape: (30,), mean: 0.055, std: 0.963

3. Estimate the data covariance

Run many realisations at the fiducial point to build the sample covariance C. The Hartlap (2007) correction is applied automatically to debias C⁻¹.

Rule of thumb: you need n_realisations >> n_data to keep the Hartlap correction close to 1.

fm.estimate_covariance(
    seeds=range(1, 21),        # 20 IC seeds
    noise_seeds=range(10),     # 10 noise seeds → 200 realisations total
)

print(f"Hartlap factor: {fm.hartlap:.3f}")
print(f"Condition number: {np.linalg.cond(fm.C):.2e}")

==================================================
  Estimating covariance matrix
==================================================

  Total realisations: 200, data points: 30
  Hartlap factor: 0.844
  Condition number: 4.68e+00
==================================================

Hartlap factor: 0.844
Condition number: 4.68e+00

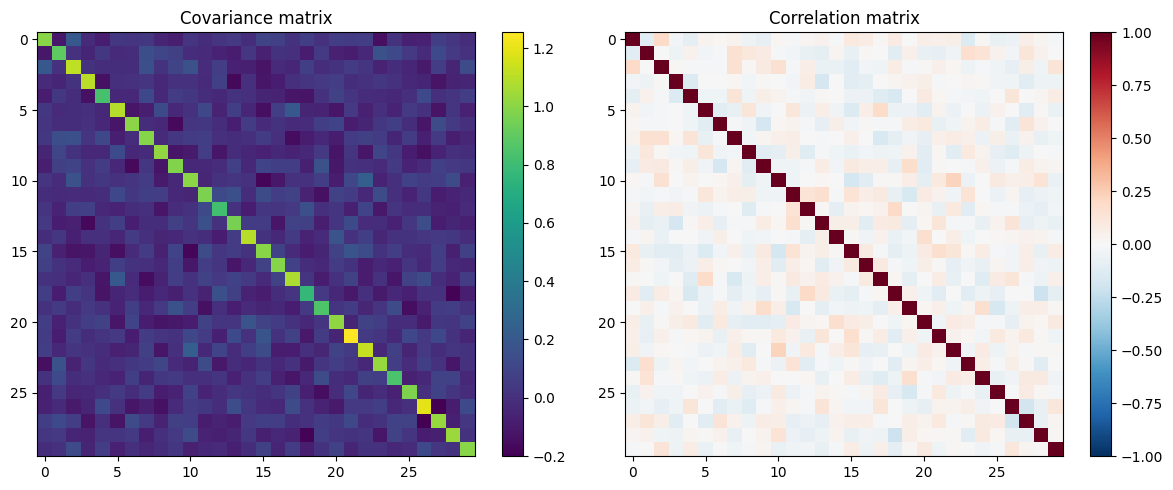

fig = fm.plot_covariance()

4. Estimate the derivatives

dmu/dtheta_j is computed by central finite differences. The default 2-point stencil gives O(h²) accuracy. A 4-point stencil (n_stencil=4) gives O(h⁴) at the cost of more simulations.

fm.estimate_derivatives(
    delta_frac=0.05,
    seeds=range(1, 21),
    noise_seed=0,      # noiseless derivatives
    n_stencil=2,
)

==================================================
  Computing derivatives (2-point stencil)
==================================================

  mu: |dmu/dtheta| = 5.4772

  sigma: |dmu/dtheta| = 1.2148
==================================================

FisherMatrix(not computed, params=['mu', 'sigma'], n_realisations=200)

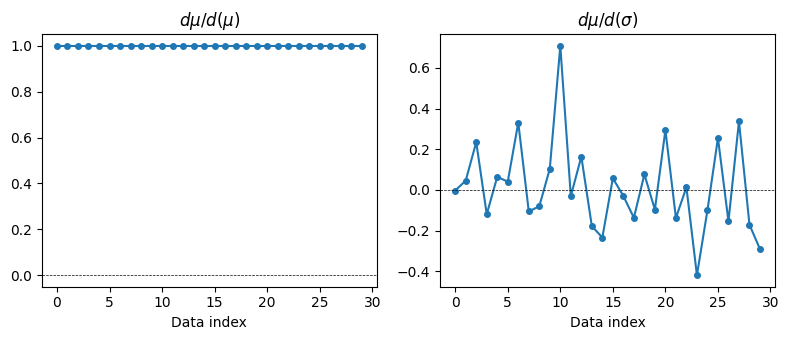

fig = fm.plot_derivatives(
    label_names={'mu': r'\mu', 'sigma': r'\sigma'}
)

5. Compute the Fisher matrix

fm.compute(method='standard')

print("\nNumerical Fisher matrix:")
print(fm.F)
print("\nAnalytic Fisher matrix:")
print(F_analytic)

==================================================
  Fisher Matrix Results  [standard]
==================================================

  --- 1D marginal errors ---
    mu: 0.1835  (inf%)
    sigma: 0.8369  (83.7%)

  --- Conditional errors ---
    mu: 0.1834
    sigma: 0.8363

  --- Correlations ---
    corr(mu, sigma): -0.038
==================================================


Numerical Fisher matrix:
[[29.73721021  0.24879704]
 [ 0.24879704  1.429969  ]]

Analytic Fisher matrix:
[[30.  0.]
 [ 0. 60.]]

6. Compare numerical vs analytic constraints

sigma_num = fm.sigma_1d()
sigma_ana = np.sqrt(np.diag(F_inv_analytic))

print(f"{'Parameter':<10} {'Numerical':>12} {'Analytic':>12} {'Diff (%)':>10}")
print("-" * 48)
for p, sn, sa in zip(param_names, sigma_num, sigma_ana):
    print(f"{p:<10} {sn:>12.4f} {sa:>12.4f} {100*(sn-sa)/sa:>9.1f}%")

Parameter     Numerical     Analytic   Diff (%)
------------------------------------------------
mu               0.1835       0.1826       0.5%
sigma            0.8369       0.1291     548.2%

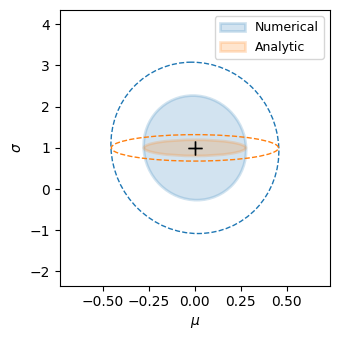

7. Plot confidence ellipses

We overlay the numerical and analytic Fisher ellipses for comparison. The analytic result is loaded into a bare FisherMatrix object.

# Wrap the analytic Fisher in a bare FisherMatrix for plotting
fm_analytic = FisherMatrix(
    simulator=None,
    theta_fid=theta_fid,
    param_names=param_names,
    verbose=False,
)
fm_analytic.F     = F_analytic
fm_analytic.F_inv = F_inv_analytic

fig = fm.plot_ellipses(
    labels='Numerical',
    others={'Analytic': fm_analytic},
    label_names={'mu': r'\mu', 'sigma': r'\sigma'},
    n_sigma_list=[1, 2],
    filled=True,
)

8. Using the NoisyLine toy model

The same workflow applies to any simulator. Here we use psiphy.toy_models.NoisyLine to forecast constraints on the slope and intercept of a noisy linear model. This example shows correlated parameter constraints.

from psiphy.toy_models import NoisyLine

# Fix the x grid with a known seed so the geometry is the same for all calls
rng_geom = np.random.default_rng(42)
_x = np.sort(rng_geom.uniform(0, 10, size=40))

def line_simulator(theta, initial_seed, noise_seed):
    slope, intercept = theta
    rng = np.random.default_rng(int(initial_seed) * 1000 + int(noise_seed))
    yerr = 0.3 + 0.2 * rng.uniform(size=len(_x))
    return slope * _x + intercept + rng.normal(scale=yerr)

fm_line = FisherMatrix(
    simulator=line_simulator,
    theta_fid=[-0.9, 4.0],
    param_names=['slope', 'intercept'],
    verbose=True,
)

fm_line.estimate_covariance(seeds=range(1, 21), noise_seeds=range(10))
fm_line.estimate_derivatives(delta_frac=0.05, seeds=range(1, 21), noise_seed=0)
fm_line.compute(method='standard')

==================================================
  Estimating covariance matrix
==================================================

  Total realisations: 200, data points: 40
  Hartlap factor: 0.794
  Condition number: 6.19e+00
==================================================


==================================================
  Computing derivatives (2-point stencil)
==================================================

  slope: |dmu/dtheta| = 38.2781

  intercept: |dmu/dtheta| = 6.3246
==================================================


==================================================
  Fisher Matrix Results  [standard]
==================================================

  --- 1D marginal errors ---
    slope: 0.0217  (2.4%)
    intercept: 0.1331  (3.3%)

  --- Conditional errors ---
    slope: 0.0110
    intercept: 0.0677

  --- Correlations ---
    corr(slope, intercept): -0.861
==================================================

FisherMatrix(computed, params=['slope', 'intercept'], n_realisations=200)

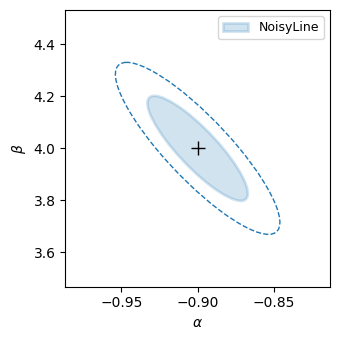

fig = fm_line.plot_ellipses(
    labels='NoisyLine',
    label_names={'slope': r'\alpha', 'intercept': r'\beta'},
    filled=True,
)

print(f"Correlation (slope, intercept): {fm_line.correlation_matrix()[0,1]:.3f}")

Correlation (slope, intercept): -0.861

Summary

Step	Method
Define simulator	f(theta, seed, noise_seed) -> array
Create object	FisherMatrix(simulator, theta_fid, param_names)
Covariance	fm.estimate_covariance(seeds, noise_seeds)
Derivatives	fm.estimate_derivatives(delta_frac, seeds)
Compute	fm.compute(method='standard')
Inspect	fm.sigma_1d(), fm.plot_ellipses()
Save / load	fm.save('results.npz') / FisherMatrix.load('results.npz')

Advanced options:

• method='CoultonWandelt2023' — bias-corrected estimator for large data vectors

• method='lfim' — score-trick estimator

• use_crn=True in estimate_derivatives — Common Random Numbers for low-noise derivatives

• fm.convergence_test_delta_frac() — choose the optimal step size
